Porcelain Indoor Standoff Insulators

Indoor Standoff Insulators,Precision Support for Switchgear

Porcelain bodies with brass fittings on each end and center mounting holes — the reliable support for copper and aluminum bus bar lines inside electrical equipment.

Request Quotation →View Specifications ↓

2.5 – 15kVVoltage Range

Brass FittingsBoth Ends

70100–70200Series Types

US & EUMain Markets

⚡ 2.5kV – 15kV Porcelain Indoor Standoff Insulators

Product Overview

Built for Indoor Bus Bar Support

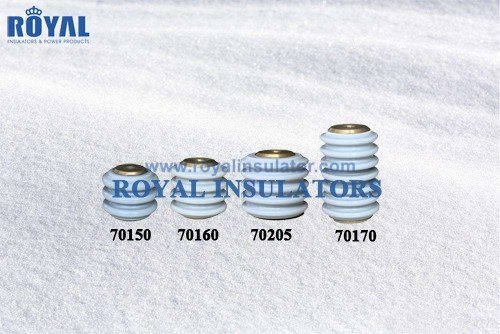

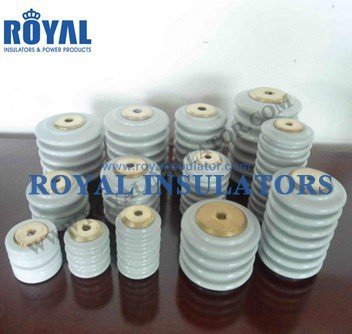

Our porcelain indoor standoff insulators combine a porcelain body with brass fittings on each end and a center mounting hole in each fitting — used to support copper or aluminum bus bar lines in various electrical equipment. Supplied from 2.5kV to 15kV across the 70100 to 70200 series: 70100, 70105, 70110, 40115, 70125, 70130, 70135, 70140, 70145, 70150, 70151, 70152, 70155, 70160, 70165, 70169, 70170, 70174, 70175, 70176, 70185, 70190, 70195, 70200, 70205, 70210, 70214, 70215.

Voltage Range

2.5kV – 15kV

Series

70100 / 70105 / 70125 / 70150 / 70155 / 70160 / 70200

Fittings

Brass, center mounting hole

Markets

Americas, Europe, East Asia

Request Quotation →Download Catalogue

✓IEC Compliant✓Brass Fittings✓Center Mounting Hole✓Anti-Pollution Glaze

0kV

Max Rating

0kV

Min Rating

Standard Series

Quality Tested

Full Ratings & Specifications

Complete Specification & Cross-Reference Table — 28 Catalog Numbers

Dimensions, clearances, electrical ratings and strength ratings for every catalog number, 2.5 kV to 15 kV. Column 1 is the ROYAL catalog number; column 2 lists the legacy USA catalog numbers — match your existing part number there to find the ROYAL equivalent, then confirm the insert thread. Use the voltage filter to narrow the list; on mobile, scroll the table sideways.

Filter by voltage:

Indoor standoff insulator ratings — 28 catalog numbers, 2.5 to 15 kV
ROYAL No.	USA No.	Dimensions (in.)		Style No.	Insert thread (each end)	Clearance (in.)		Electrical rating		Strength rating (lbs)			PCS / Carton

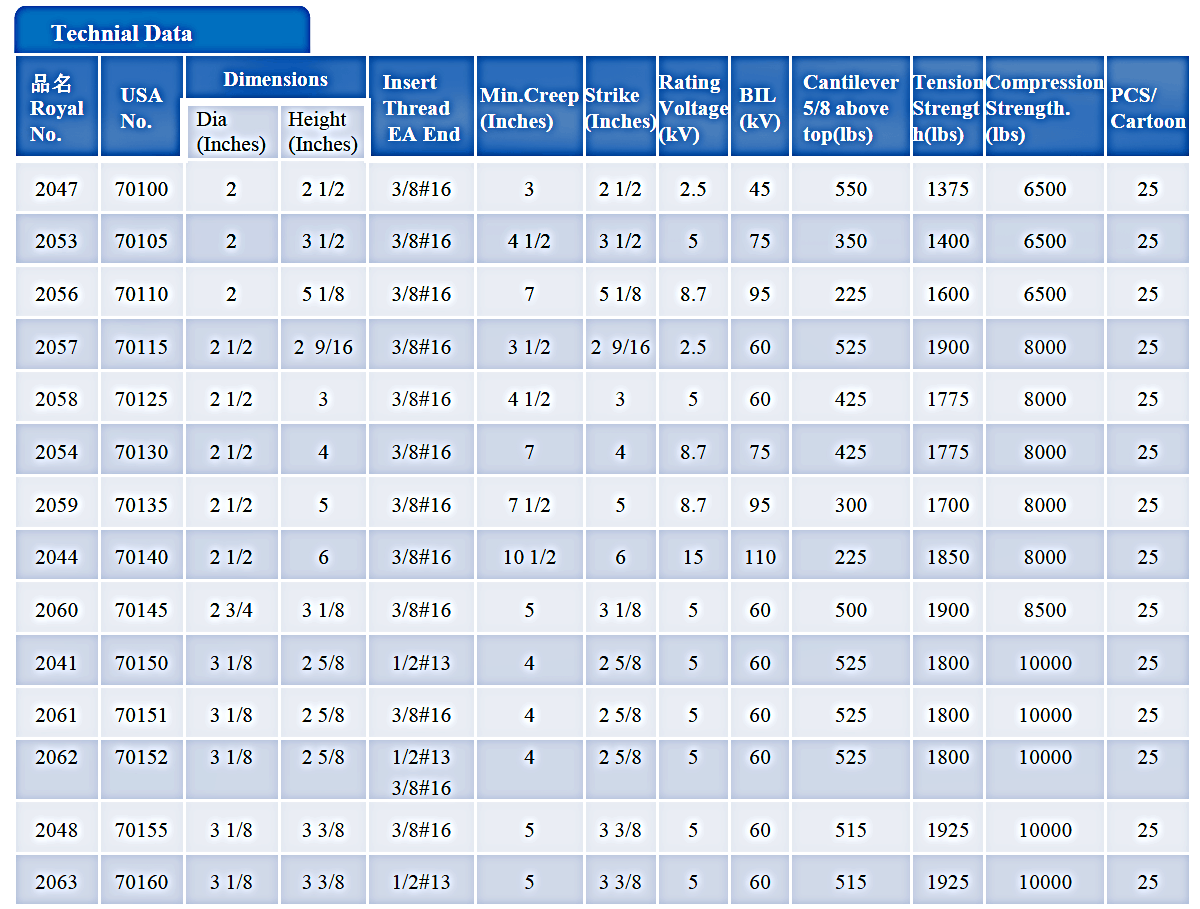

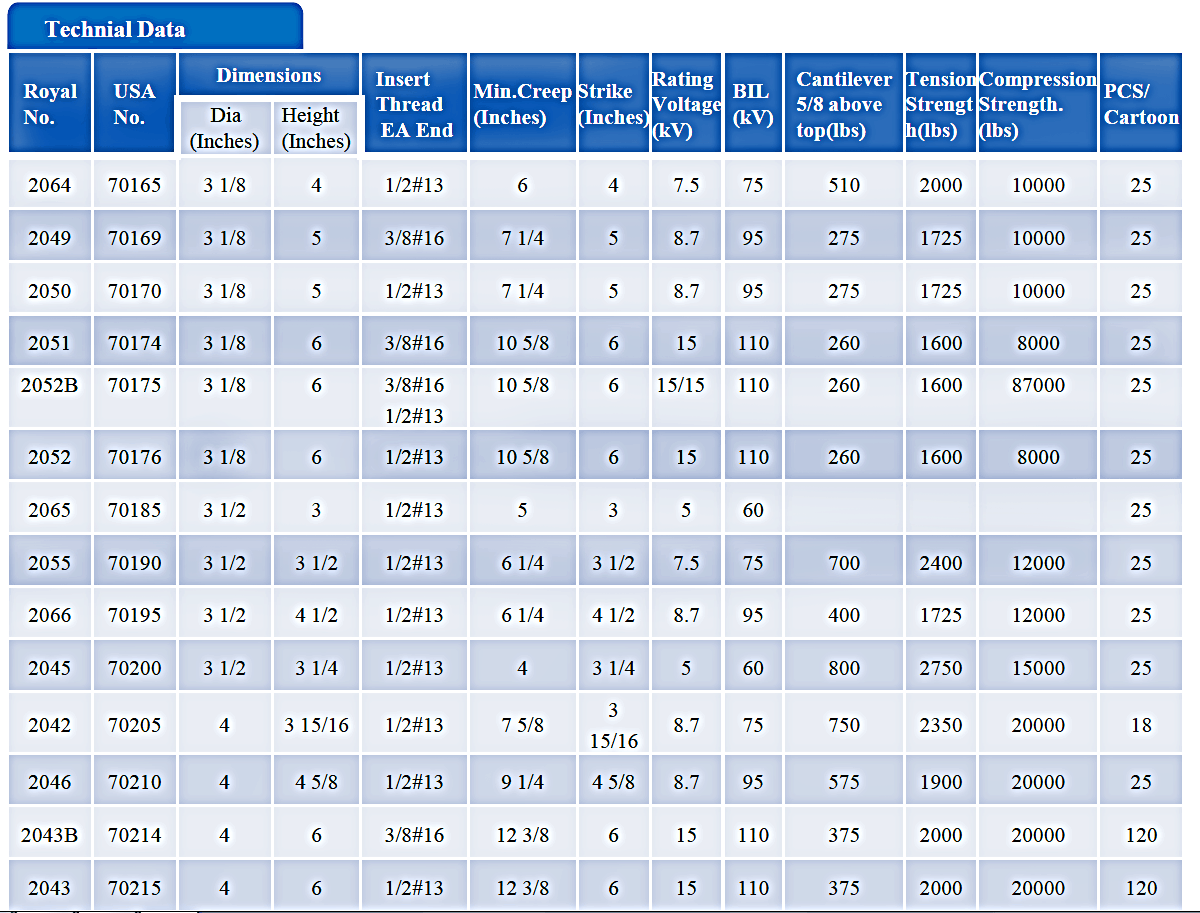

ROYAL No.	USA No.	Dia.	Height	Style No.	Insert thread (each end)	Min. creep	Strike	Rating (kV)	BIL (kV)	Cantilever 5/8 in. above top	Tension	Compression	PCS / Carton
2047	70100	2	2-1/2	1	3/8″-16 UNC	3	2-1/2	2.5	45	550	1,375	6,500	25
2053	70105	2	3-1/2	1	3/8″-16 UNC	4-1/2	3-1/2	5	75	350	1,400	6,500	25
2056	70110	2	5-1/8	1	3/8″-16 UNC	7	5-1/8	8.7	95	225	1,600	6,500	25
2057	40115	2-1/2	2-9/16	1	3/8″-16 UNC	3-1/2	2-9/16	2.5	60	525	1,900	8,000	25
2058	70125	2-1/2	3	1	3/8″-16 UNC	4-1/2	3	5	60	425	1,775	8,000	25
2054	70130	2-1/2	4	1	3/8″-16 UNC	7	4	8.7	75	425	1,775	8,000	25
2059	70135	2-1/2	5	1	3/8″-16 UNC	7-1/2	5	8.7	95	300	1,700	8,000	25
2044	70140	2-1/2	6	1	3/8″-16 UNC	10-1/2	6	15	110	225	1,850	8,000	25
2060	70145	2-3/4	3-1/8	1	3/8″-16 UNC	5	3-1/8	5	60	500	1,900	8,500	25
2041	70150	3-1/8	2-5/8	1	1/2″-13 UNC	4	2-5/8	5	60	525	1,800	10,000	25
2061	70151	3-1/8	2-5/8	1	3/8″-16 UNC	4	2-5/8	5	60	525	1,800	10,000	25
2062	70152	3-1/8	2-5/8	1	1/2″-13 or 3/8″-16 UNC	4	2-5/8	5	60	525	1,800	10,000	25
2048	70155	3-1/8	3-3/8	1	3/8″-16 UNC	5	3-3/8	5	60	515	1,925	10,000	25
2063	70160	3-1/8	3-3/8	1	1/2″-13 UNC	5	3-3/8	5	60	515	1,925	10,000	25
2064	70165	3-1/8	4	1	1/2″-13 UNC	6	4	7.5	75	510	2,000	10,000	25
2049	70169	3-1/8	5	1	3/8″-16 UNC	7-1/4	5	8.7	95	275	1,725	10,000	25
2050	70170	3-1/8	5	1	1/2″-13 UNC	7-1/4	5	8.7	95	275	1,725	10,000	25
2051	70174	3-1/8	6	1	3/8″-16 UNC	10-5/8	6	15	110	260	1,600	8,000	25
2052B	70175	3-1/8	6	1	3/8″-16 or 1/2″-13 UNC	10-5/8	6	15	110	260	1,600	8,700	25
2052	70176	3-1/8	6	1	1/2″-13 UNC	10-5/8	6	15	110	260	1,600	8,000	25
2065	70185	3-1/2	3	1	1/2″-13 UNC	5	3	5	60	—	—	—	25
2055	70190	3-1/2	3-1/2	1	1/2″-13 UNC	6-1/4	3-1/2	7.5	75	700	2,400	12,000	25
2066	70195	3-1/2	4-1/2	1	1/2″-13 UNC	6-1/4	4-1/2	8.7	95	400	1,725	12,000	25
2045	70200	3-1/2	3-1/4	2	1/2″-13 UNC	4	3-1/4	5	60	800	2,750	15,000	25
2042	70205	4	3-15/16	2	1/2″-13 UNC	7-5/8	3-15/16	8.7	75	750	2,350	20,000	18
2046	70210	4	4-5/8	2	1/2″-13 UNC	9-1/4	4-5/8	8.7	95	575	1,900	20,000	25
2043B	70214	4	6	2	3/8″-16 UNC	12-3/8	6	15	110	375	2,000	20,000	120
2043	70215	4	6	2	1/2″-13 UNC	12-3/8	6	15	110	375	2,000	20,000	120
Cantilever rating measured 5/8 in. above the top of the insulator. All dimensions and ratings in inches and pounds (imperial). Metric data available on request. Gray glaze standard; other glaze colours on request. Catalog numbers 70152 and 70175 available with either insert thread.

Can’t find your number? Send us a photo of the marking on your old insulator and we’ll match it — Contact us.
