Din Type Transformer Bushing
Din Type Transformer Bushings,The Safe Passage In & Out
Transformer bushings lead internal high and low voltage wires to the external tank case — insulation and sealing in one reliable component.
Din Type Porcelain Transformer Bushing
A transformer bushing leads the internal high and low voltage wires to the external tank case — not only as a lead-out device but also as the insulation between the wires and the tank. Din type bushings offer standardized, interchangeable designs.
Din Bushing Range

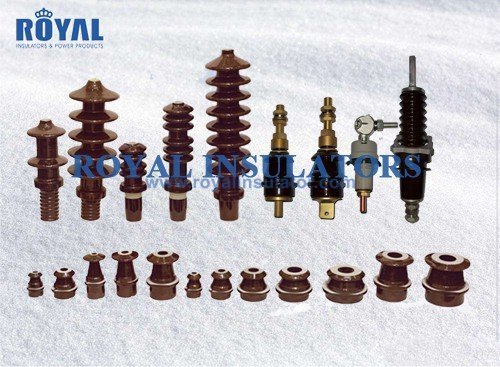

Din type porcelain transformer bushings for LV and HV applications.
Key Technical Advantages
Din Standard
Standardized dimensions for easy replacement.
Dual Function
Leads wires out while insulating from the tank.
Porcelain Body
Proven porcelain insulation and sealing.
Oil-Tight
Reliable seal prevents leakage and moisture.
Optimized Design Features
- ✓Din type standardized design
- ✓Leads HV and LV wires through tank wall
- ✓Porcelain body with metal fittings
- ✓Oil-tight sealing
- ✓Interchangeable with standard bushings
Industry Applications
- ✓Distribution transformers
- ✓Power transformers
- ✓Tank-mounted apparatus
- ✓Replacement bushing stock
- ✓Transformer repair shops
You May Also Need
Get a Custom Quote in 24 Hours
Send us your specifications — voltage class, BIL, drawings or standards — our engineering team will respond within one business day with pricing and technical recommendations.
- Direct communication with engineers, not sales reps
- Free technical consultation & sample support
- FOB / CIF / DDP terms — we handle the logistics
