Porcelain Pin Insulators
Pin Insulators,Simple. Strong. Trusted.
Pin insulators support or suspend wires and form electrical insulation between tower and wire — with sufficient insulation and mechanical strength for every load.
Porcelain Pin Insulators for Distribution Lines
A pin insulator supports or suspends a wire and forms electrical insulation between the tower and the wire. The pin-type porcelain insulator with cast steel fittings must withstand working voltage, overvoltage, and mechanical stress — with verified low-frequency flashover, impulse and RIV data.
Pin Insulator Series

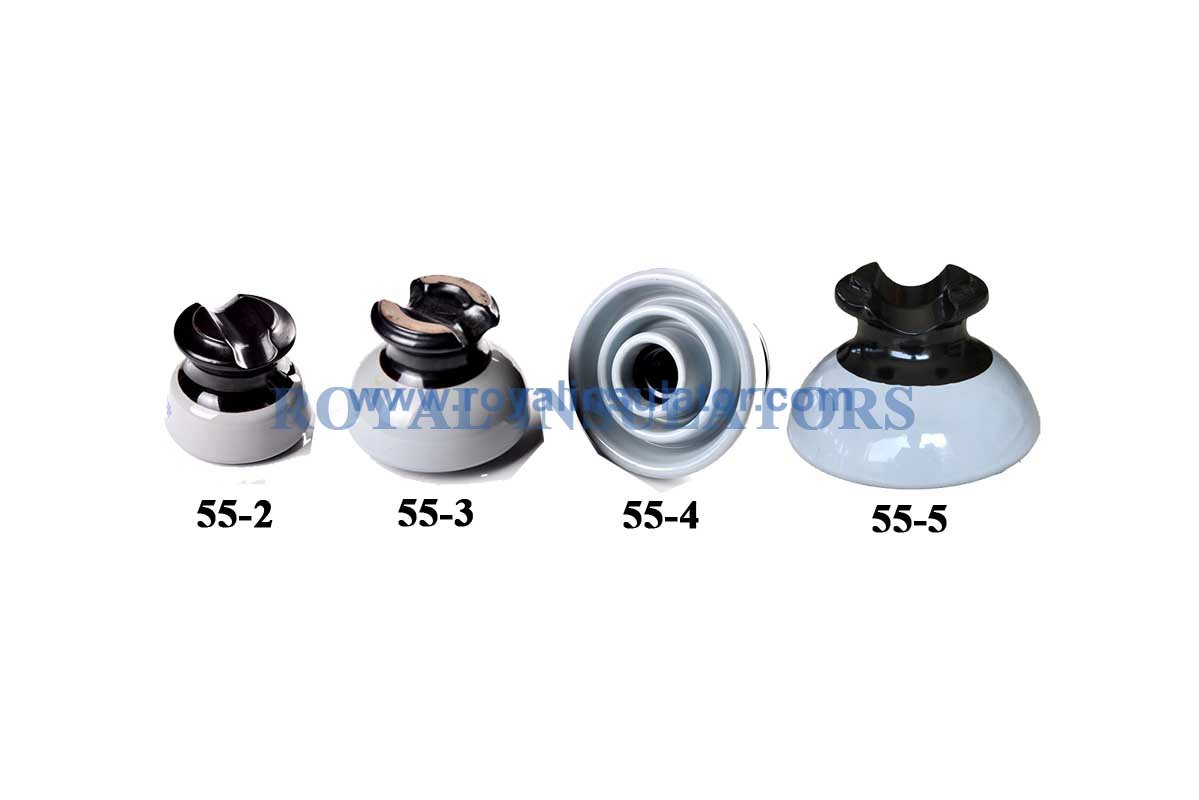

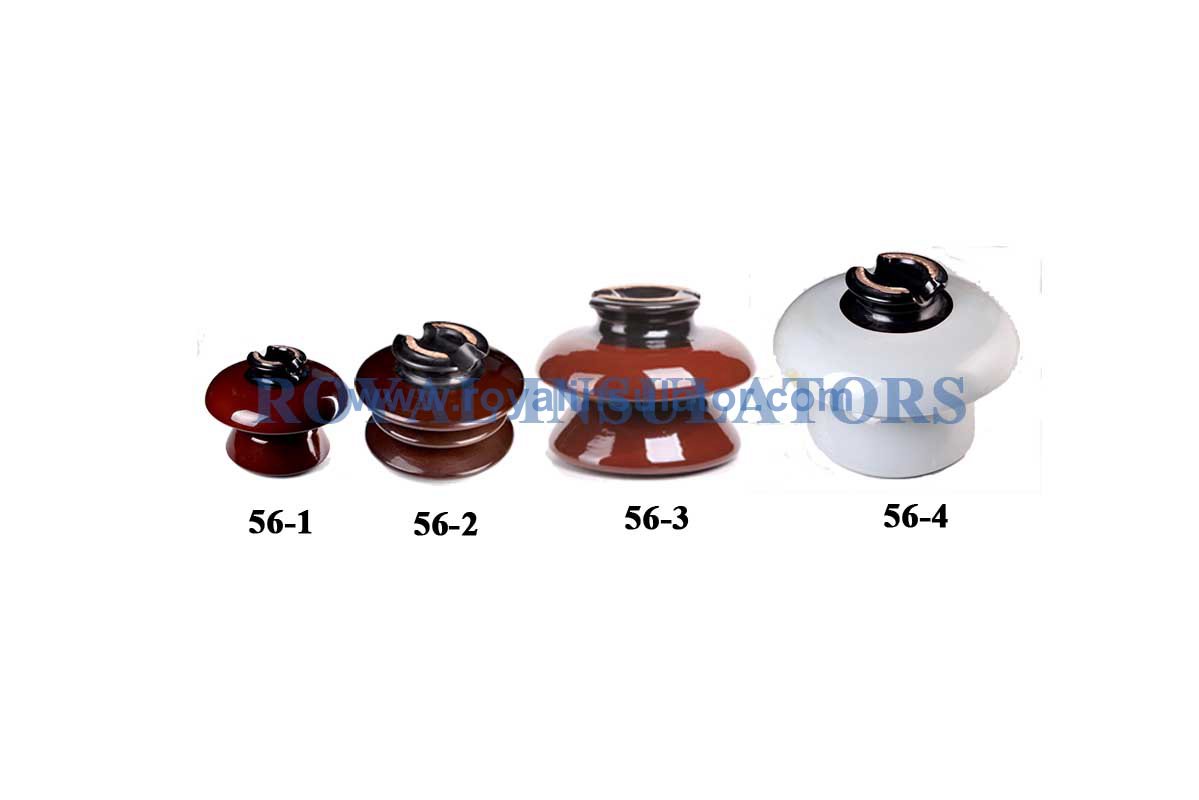

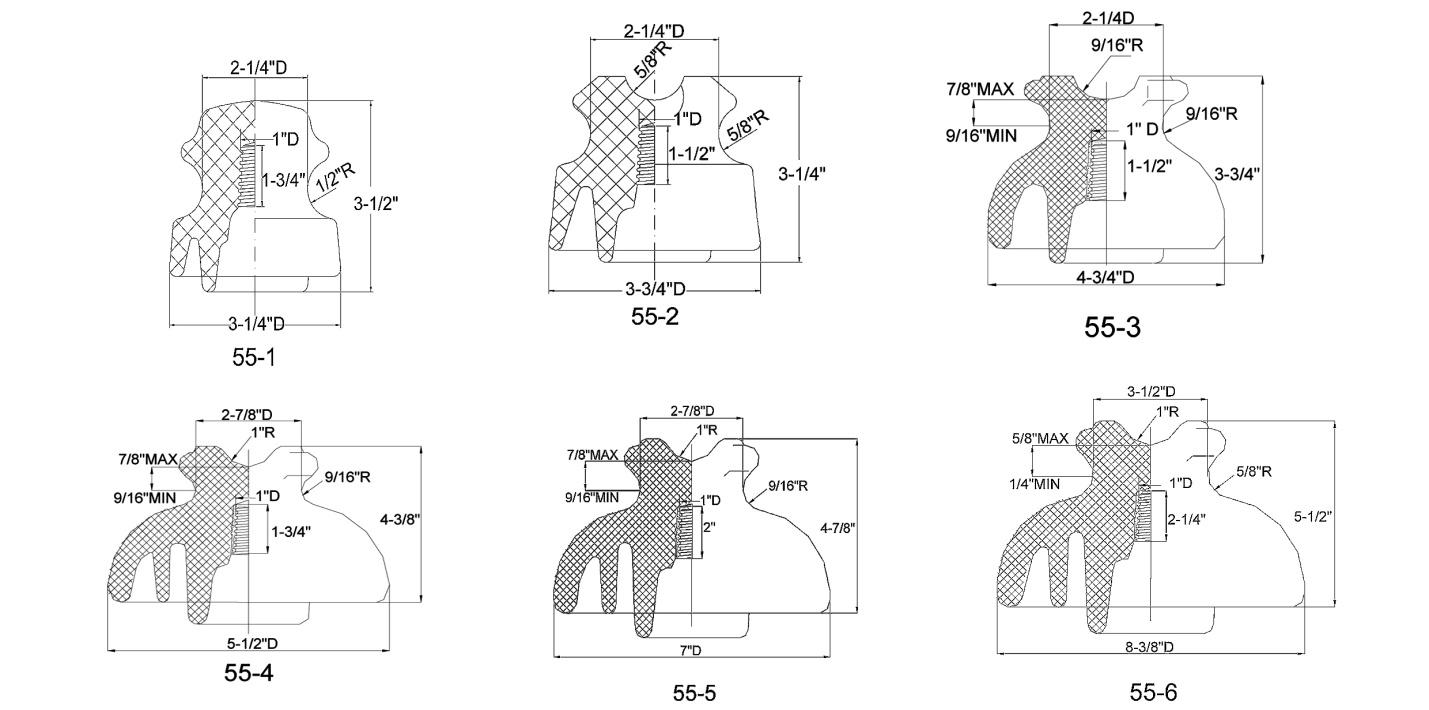

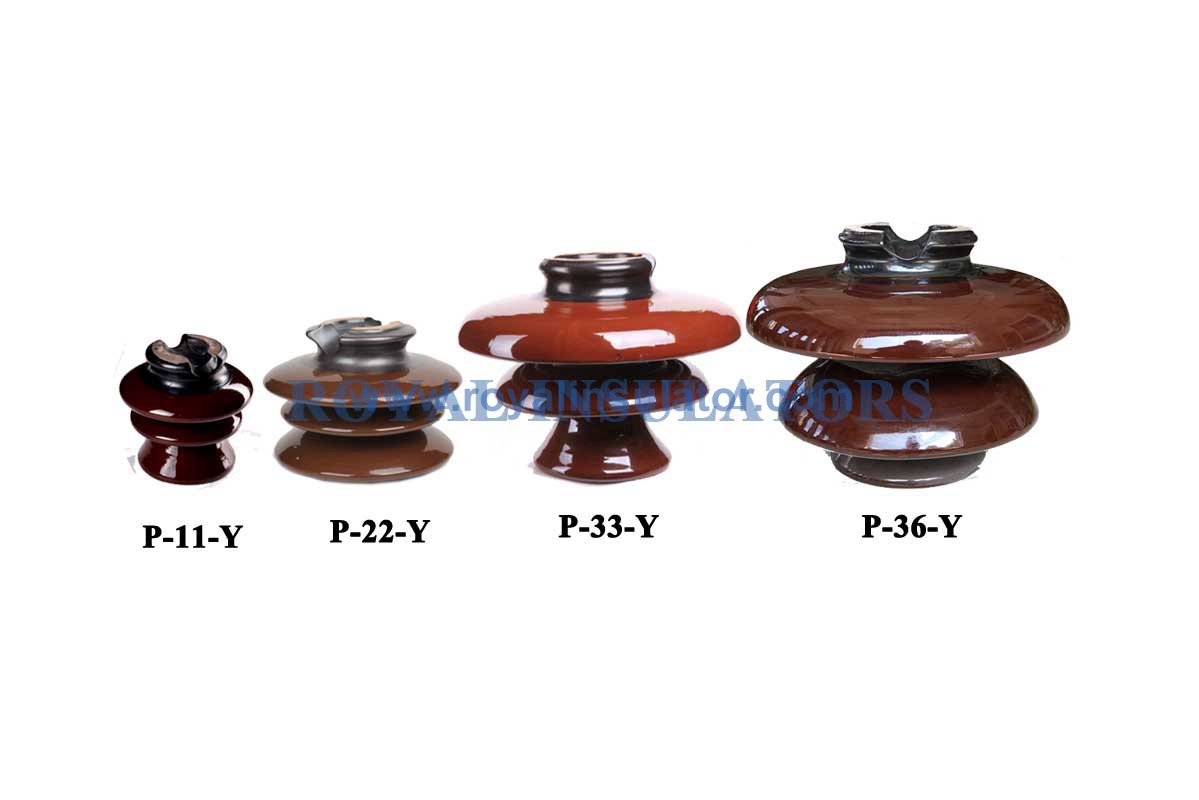

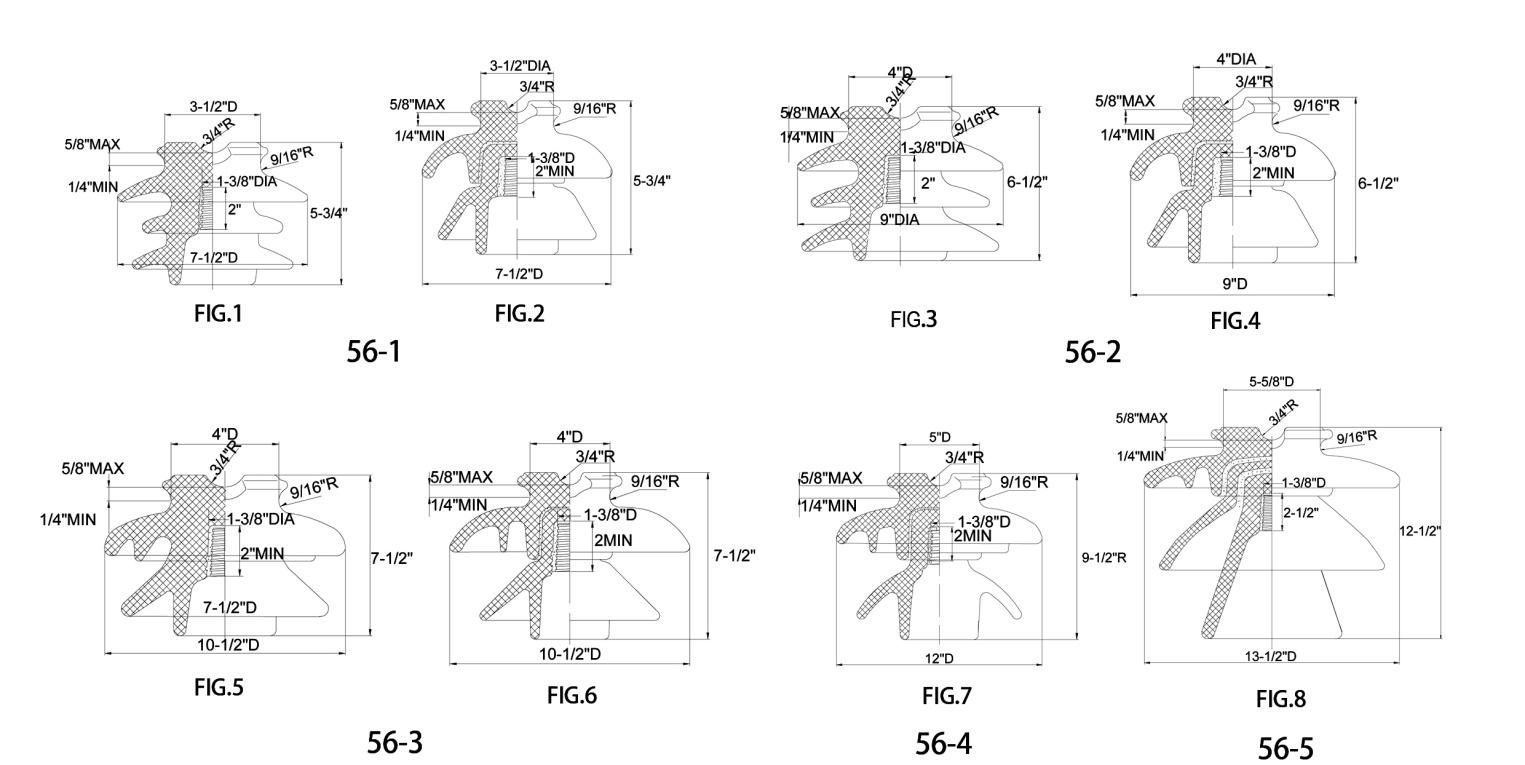

55 series, 56 series and BS standard pin insulators with full electrical test data.
Key Technical Advantages
Mechanical Strength
Sufficient insulation and mechanical strength for working and overvoltage.
Verified Data
Full flashover, impulse and RIV test data per type.
Standard Compliant
Manufactured to IEC, ANSI and BS standards.
Versatile Use
Supports wires on distribution towers and poles worldwide.
Optimized Design Features
- ✓Pin type porcelain with cast steel fittings
- ✓55 and 56 series plus BS standard types
- ✓Verified low-frequency flashover voltage
- ✓Critical impulse and RIV test data available
- ✓Grey or brown glaze options
Industry Applications
- ✓Distribution line insulation
- ✓Tower and pole wire support
- ✓Rural electrification networks
- ✓Railway and industrial lines
- ✓Replacement for existing pin installations
